Level 6: AI-Based Visual Verification

Final-resort tier — AI judges whether a problem is resolved when neither L4 nor L5 can reach the assertion.

What Level 6 Tests

Level 6 produces a visual verdict from an AI subagent. The subagent loads a per-task test-flow skill (the procedure + verdict criteria) plus a browser-driving skill, drives the UI, and returns a structured PASS/FAIL with evidence. The judgment itself is the verdict — there is no deterministic assertion behind it.

This is fundamentally different from L5:

L6 is for the residual class of problems where capturing “the right thing” for L5 to assert on is itself intractable.

When to Escalate to L6

Escalate only when both of these are true:

1. L4 (E2E) is intractable. The UI is too complex, stateful, or canvas-driven to drive cleanly from Playwright. Examples: zoomable photo editors, free-form drawing surfaces, multi-layer compositing with resizable objects, drag-snap-resize interactions where every step depends on previous transforms.
2. L5 (mechanical visual) cannot reach the assertion. Computed-style checks don’t apply (the surface is <canvas>). Screenshot pixel-diff is too noisy (anti-aliasing, sub-pixel rendering, animation in-flight). DOM bounding rects don’t expose the visual size of canvas-rendered content.

If only one of the two is true, the right answer is the other tier — not L6.

Worked Example: Canvas-to-Canvas Image Parity

The motivating case was a web app with two canvas-based stages, each running its own camera/zoom transform stack. The user drops an image onto the first canvas, frames it inside a clip rectangle, and advances to the second canvas where the image continues to be editable inside the clipped region. The visual contract: the image should appear at the same effective size relative to its containing canvas after the handoff.

The bug — the image renders at the wrong size relative to the second canvas:

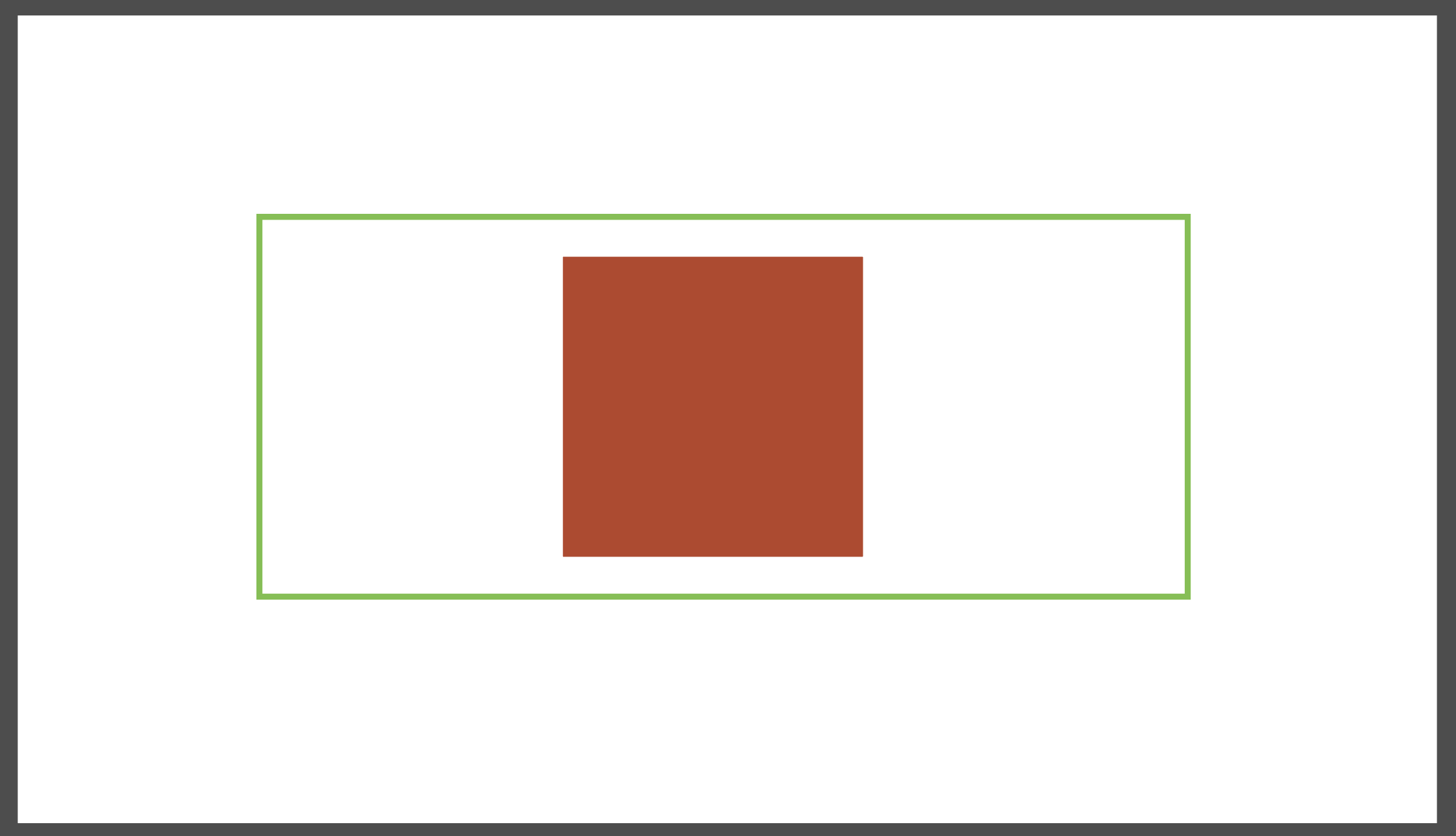

Stage A (first canvas, expected): dark gray app chrome around a white canvas. Green rectangle = the user’s clip selection. Red square = the placed image, centered inside the clip.

Stage B (second canvas, buggy): the second canvas is rendered at the clip-rect’s dimensions, but the placed image is painted at the same physical pixel size as in Stage A — making it appear visually too large relative to the smaller canvas. The image-to-canvas ratio diverges between the two stages.

Why neither L4 nor L5 worked cleanly:

• L4 was intractable: the drop target is the canvas surface, not a DOM element. Both stages have their own camera transforms, zoom, and pan state. Writing a deterministic E2E required reverse-engineering both transform stacks just to assert on the visual size after the handoff. Several attempts produced flaky specs.
• L5 couldn’t reach the assertion: there is no DOM element with a stable bounding rect for the image in either stage. Screenshot pixel-diff was too noisy because of canvas anti-aliasing.

The practical path: a per-task test-flow skill that documents the procedure (drop fixture → screenshot Stage A → advance → screenshot Stage B → read internal state hooks for both canvases) and an AI subagent that loads it, drives the flow, and produces a PASS/FAIL with a ratio measurement plus both screenshots attached.

This is what L6 is for — and only this kind of case.

How to Use /verify-ui-ai

The L6 entry point is the project-scope skill /verify-ui-ai. It runs in two halves:

1. Author a per-task test-flow skill at .claude/skills/test-flow-<topic>/SKILL.md capturing:
   • the exact scenario (selectors, fixture paths, viewport sizes)
   • what to capture (screenshots, internal-state reads)
   • the verdict criteria (PASS/FAIL with explicit tolerances where mechanical, AI judgment where unavoidable)
   • the output schema (named fields the subagent must return)
2. Dispatch a verification subagent via the Agent tool. The subagent loads the test-flow skill plus a browser-driving skill (/verify-ui primary, /headless-browser fallback), runs the procedure, and returns the structured verdict.

The test-flow skill is the durable artifact. Subsequent runs reuse it — the procedure is locked in, the subagent gets the same context each time.

Prefer Project-Scope Test-Flow Skills

Author the test-flow skill under .claude/skills/test-flow-<topic>/ (project-scope, checked into the repo), not under $HOME/.claude/skills/ (personal-only). Reasons:

• The verdict procedure is part of the codebase’s testing strategy. The team needs to see it, review it, and update it as the UI evolves.
• A personal-only skill creates verdict drift — a teammate running the “same” test against a different procedure produces incomparable results.
• Project-scope skills are picked up by the same setup:doc-skill script that wires the repo’s other tracked skills.

Pair with Deterministic Specs When Possible

L6 is a one-shot evidence tool. It clears a difficult problem once. Long-term coverage still needs a deterministic spec — even a partial one. Patterns that work:

• Pin part of the surface mechanically. If L4 can verify the canvas mounts and accepts a drop, but cannot verify the visual result, write the L4 spec for what it can verify and use L6 for the residual.
• Snapshot the AI verdict. When L6 passes, save the screenshots + verdict + prompt to the PR or to a tracked evidence directory. Future regressions can compare against the snapshot before reaching for L6 again.
• Extract a measurement. If the L6 run computes a numerical ratio (e.g. “Stage B image width / Stage A image width = 1.02”), that number can later become an L5 assertion against an internal state hook — even if the rendered surface stays opaque to the DOM.

Risks and Limitations

• Non-deterministic. The same flow can return different verdicts across runs. Treat any single PASS as one data point.
• Cost-bearing. Each L6 run spawns a subagent, drives a browser, and consumes tokens. Cost is non-trivial even locally; on CI it compounds rapidly and unpredictably.
• Hallucination risk. An AI judge can confidently report PASS on a broken UI if the test-flow skill’s verdict criteria are vague. Tighten the criteria with explicit thresholds wherever possible — leave AI judgment only for the genuinely subjective part.
• Verdict drift. Different runs of the same procedure with different model versions may judge edge cases differently. Lock the procedure in the test-flow skill; do not inline criteria into ad-hoc prompts.
• Not reproducible. A failed L6 run cannot be replayed deterministically to debug the failure. Capture screenshots and internal-state dumps in the output schema so the failure is investigable even when the verdict isn’t reproducible.

Archive Results for Auditability

Because L6 verdicts are non-repeatable, archive the evidence: screenshots, the structured verdict, the prompt the subagent ran, and any internal-state dumps. A future maintainer asking “did this ever actually pass?” needs to be able to find the artifact, not re-run the test.

Default destination: the GitHub issue or PR comment that drove the work. Screenshots accumulate every time L6 is run; committing them into the repo grows the working tree indefinitely and slows clones over time. Issue and PR comments keep the evidence permanently linked to the conversation that produced it, the repo stays lean, and reviewers can scroll the comment thread to see what each verification round looked like.

The repo-side alternative — an evidence/ directory or similar — is a valid project choice when issue/PR comments aren’t an option (e.g., internal repos with no centralized issue tracker, or when the evidence must travel with the code). If your project prefers that pattern, follow it. But absent a specific policy, post to the issue/PR comment.

L6 Is Not a Substitute For

L6 earns its place only when the alternatives are genuinely intractable for the specific surface being verified.
